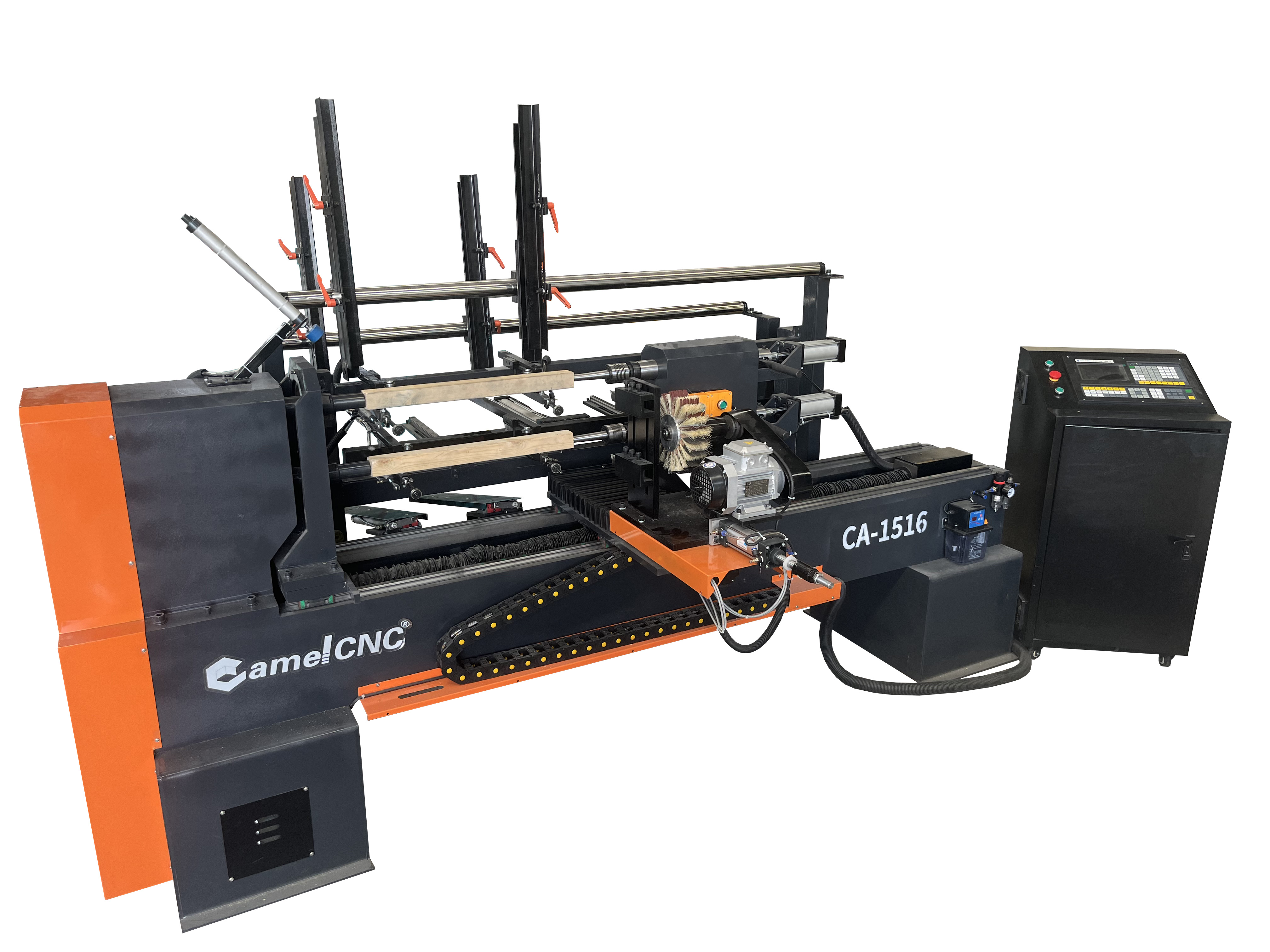

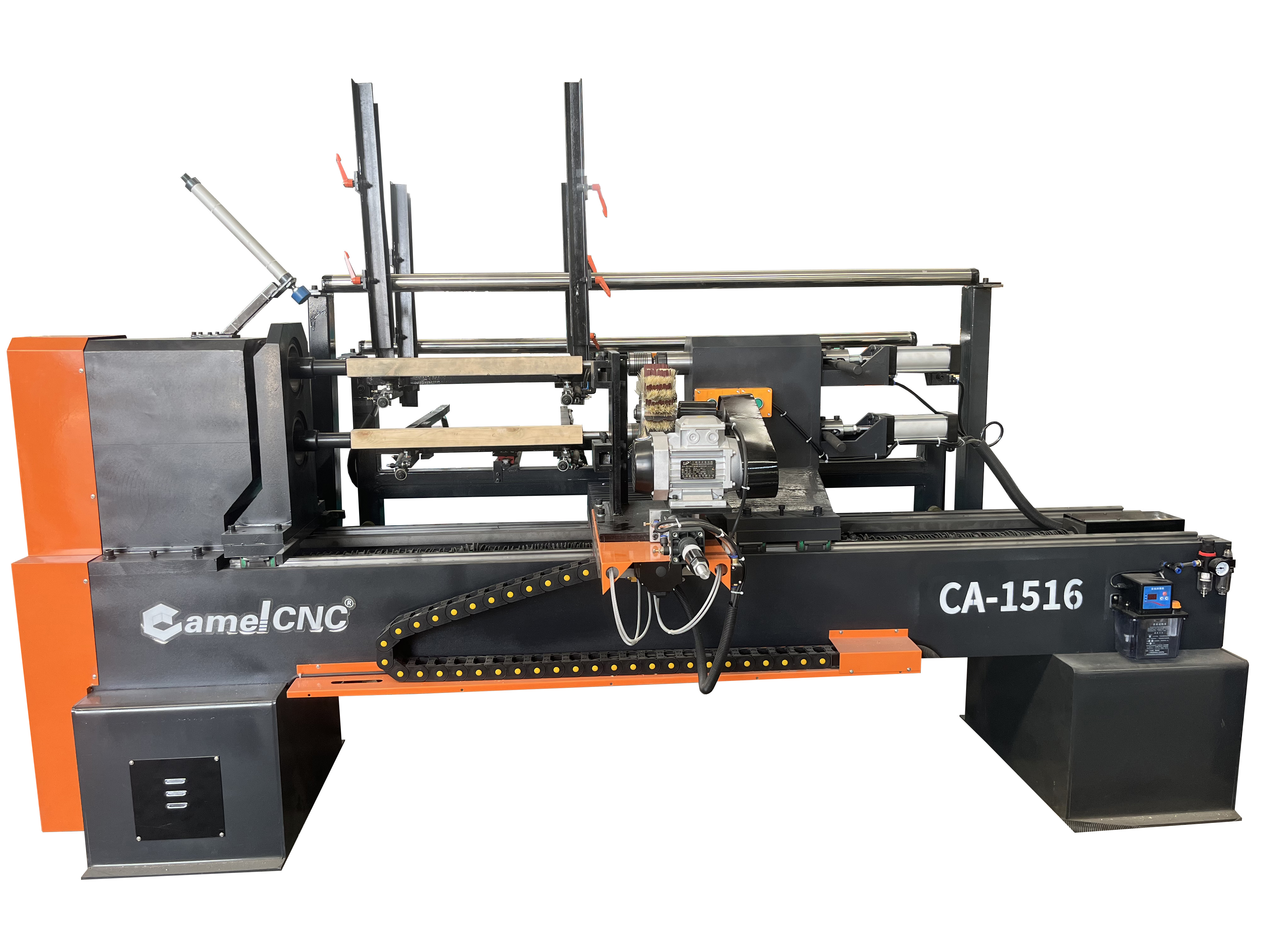

CA-1516 Auto Feeding CNC Wood Lathe With Double axis
Specification:
1.Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, machine weight up to 1500kgs to make sure the lathe body stabilized and never deformed.
2.Special used for wood turning and wooden cylinder engraving, for table legs, stair railing (banisters), etc.
3. Adopting advanced handheld DSP system with USB port which is easy for operating even without a computer
4. Adopt Germany ball screw and Taiwan HIWIN helical square guide rail with high precision and longevity.
5. Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.
6.Rotating speed can be adjusted by inverter also you can see speed on control cabinet panel
7.One time tool setting to finish the whole work piece.
8.Turning,broaching and engraving can be done with one machine by high speed.
Technical Data:
| Model | CA-1516 |
| Max processing length | 1500mm(can custom 2000/2500/3000mm) |
| Max turning diameter | Max 160mm diameter for double axis working, max 300mm diameter for single axis working, |
| Air pressure | 0.6-0.8Mpa |
| Power supply | AC 380V 3 phase 50HZ/60HZ（can custom 220V） |
| Max feed rate | 2000mm/min |
| min setting unit | 0.01cm |
| Transmission type | Ball screw for Y axis |
| Guider | Taiwan Hiwin orbit |
| Main shaft rotating speed | 0-3000r/min |
| Motor power | 4kw |
| Cutter material | Hard alloy blade |
| Control System | LCD control system |
| Hand controller recognise file | *.dxf |
| Drawing Software | AutoCAD |
| Command Language | G code |
Applications:
Automatic CNC Wood lathe is used for various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bats, car wooden furniture, children' s bed column, etc.
