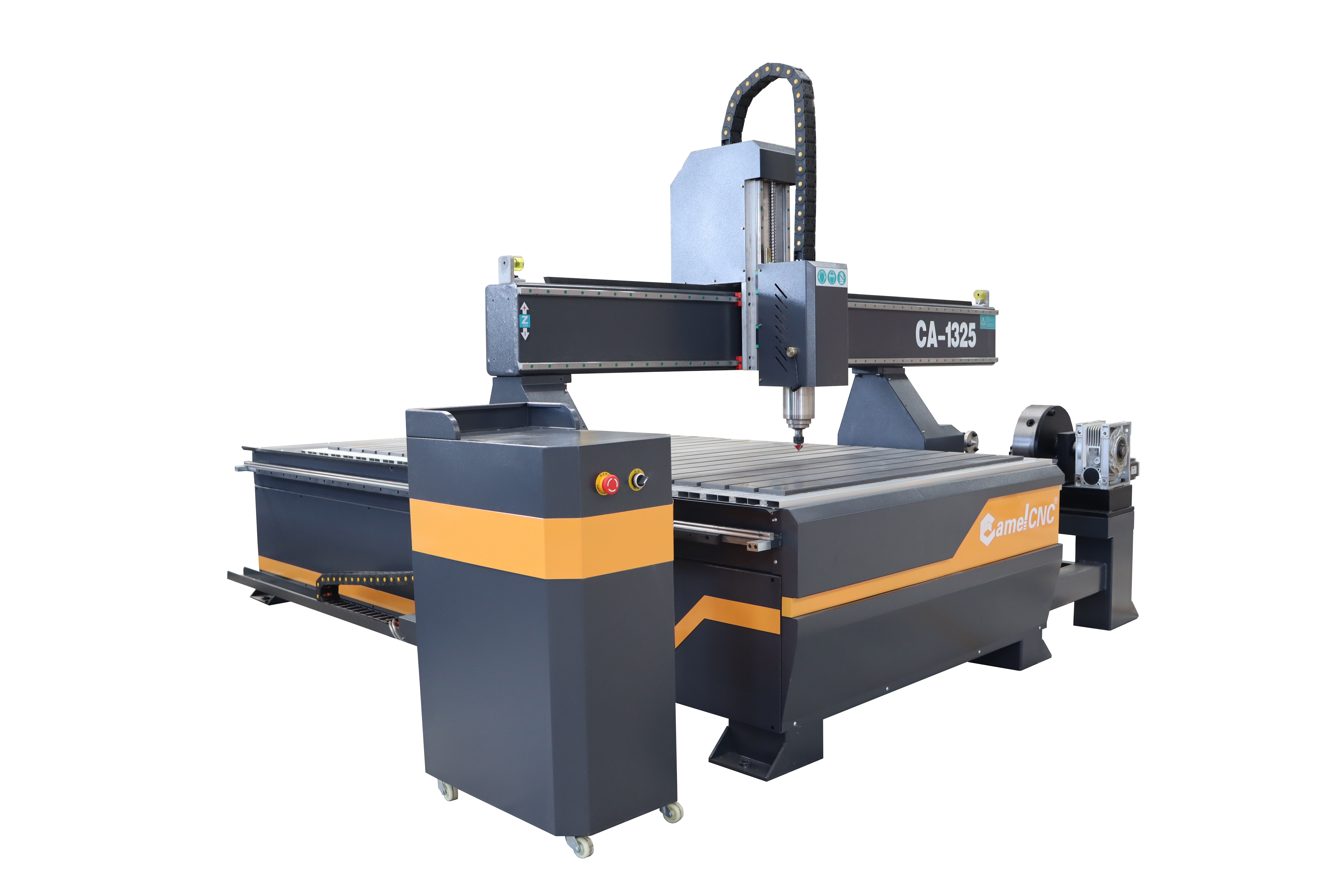

Features:
1. Double motors and drivers of Y axis ensure steady movement.
2.Rack gear transmission ensures fast speed and high accuracy.
3.Imported square rail ensures high accuracy and heavy workload.
4.Intelligent protection of working table can avoid damage resulted from the wrong operation.
5. Intelligent overrunning protection can avoid mechanical collision when set graphic exceeds
processing size.
Application:
1.This machine is widely used in furniture processing industry, home decoration, wood working decoration, doors manufacturing, wood art craft and so on. it is also widely used in processing for single lines, milling,3D embossing, cutting and engraving etc.
2.Efficient manufacturing of wooden products, advertising billboard, acrylic cutting, letter mold form-ling and mass cutting. Also the machine can engrave on iron, brass, aluminum, plastic and wood boards and other non-metal materials.
Technical Data
NO. | Description | Parameter | |
1 | X,Y,Z Working Area | 1300x2500x200mm | |
2 | Table Size | 1700×3040mm | |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm | |
4 | X,Y,Z Repositioning Positioning Accuracy | ±0.05mm | |
5 | Lathe Structure | Welded Structure | |
6 | X, Y Structure | Rack gear Transmission, Shaft Linear Bearings | |
7 | Z Structure | Ball Screw, Shaft Linear Bearings | |
8 | Max. Consume power | 6.5Kw | |
9 | Max. Speed | 0-32000mm/min | |
10 | Max. Working Speed | 0-20000mm/min | |
11 | Spindle Power Motor | 3.2kw water-coolant Spindle | |
12 | Spindle Speed | 0-24000RPM | |
13 | Drive Mode | Stepper Motor and driver | |
14 | Working Voltage | AC220V/380V, 50/60Hz | |
15 | Command | G Code, *uoo, *mmg, *plt | |
16 | Operating System | NC-STUDIO | |
17 | Collet | ER20 | |
18 | X,Y Working Delicacy | <0> | |
19 | Software | Ucancam, Artcam,Type3 | |
20 | Running Circumstance | Temperature: 0℃～45℃ Relative humidity: 30%～75% | |

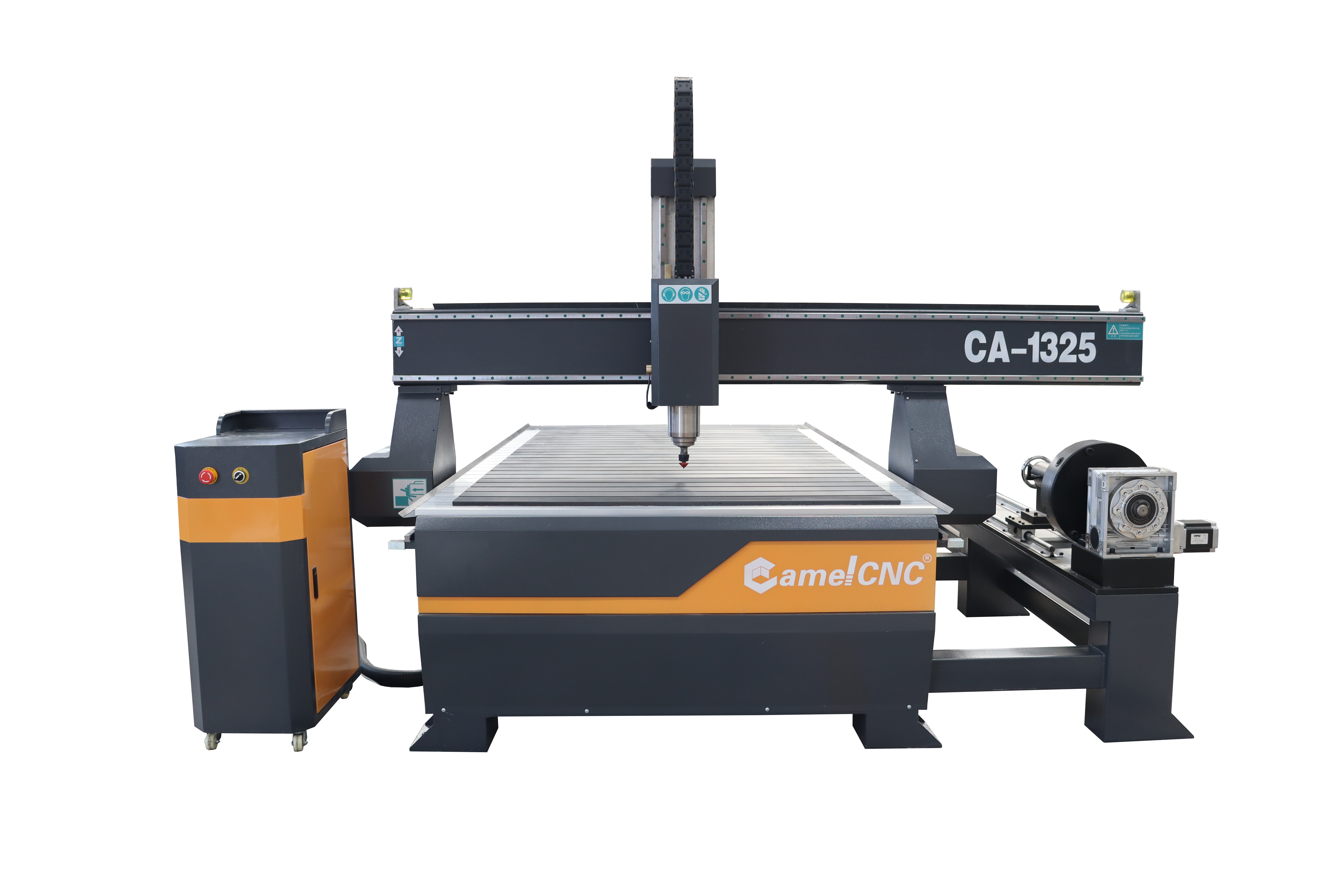

21 | 4 Axis independent Rotary System | 300mm diameter |
