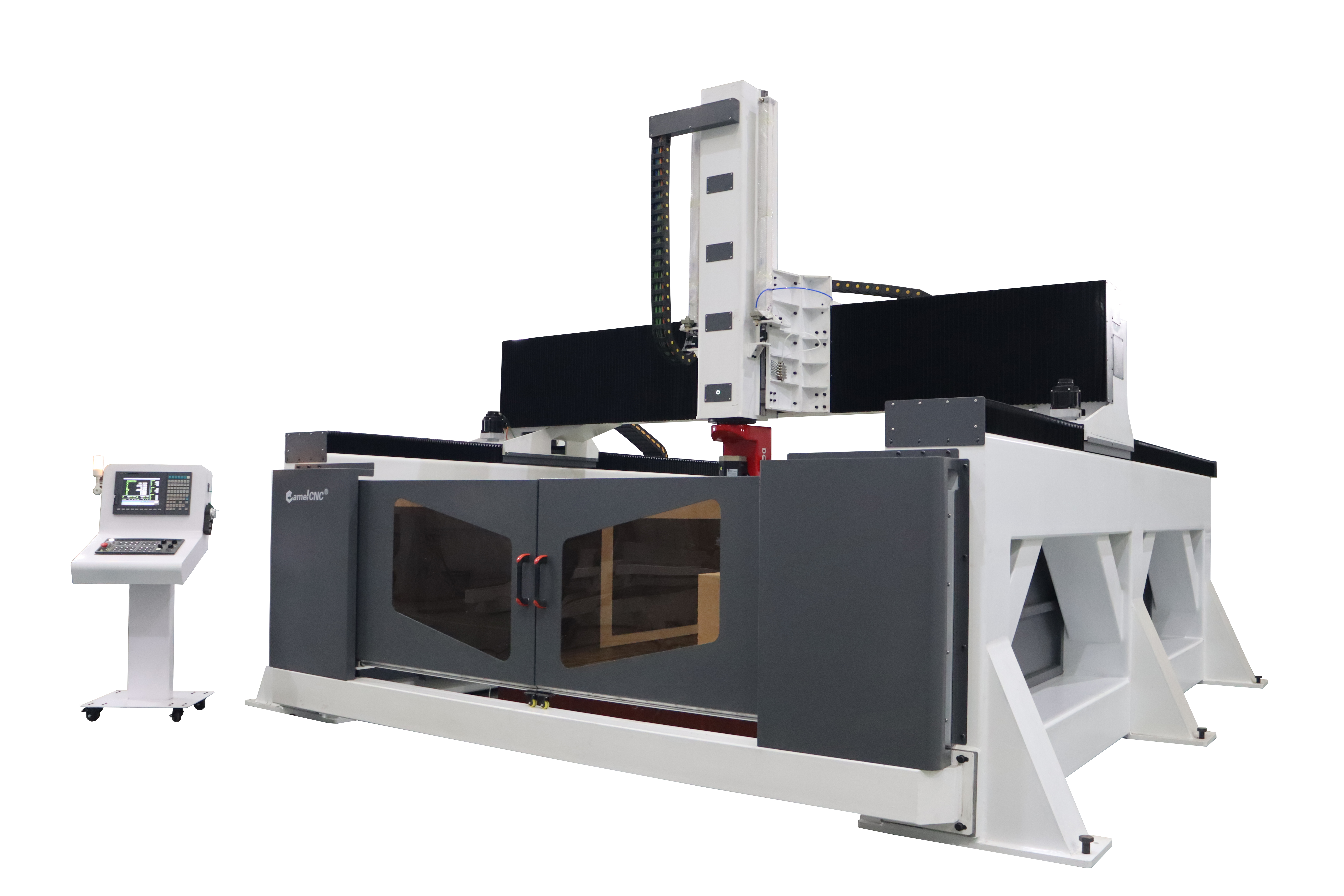

CA-2025 5 Axis CNC Router
Applicable industries:
This machine is widely used in all kinds of foam material, EPS, wood, soft metal, plastic, acrylic, stone, PVC, Composite board, etc.
And slotting, chamfering, drilling, milling groove and other multi-angle processing can be finished by machine.
Performance parameter:
Name of Controlling Axis | The component of spindle move around left and right (infeed stroke). Move around left and right: +X | |||
Move forward and backward along working table (Longitudinal stroke). Move forward and backward: +Y | ||||
The component of spindle move up and down (vertical stroke). Move up and down: +Z | ||||
The original point of controlling axis | X axis: The original point is on the left side of working table | |||
Y axis: The original point is in the back of working table | ||||
Controlling Stroke | X axis stroke | 2000mm | ||
Y axis stroke | 2500mm | |||
Z axis stroke | 1000mm | |||
A axis | ±120° | |||
C axis | 360° | |||
Feeding speed |
Rapid Traverse | X axis | 45m/min | |
Y axis | 45m/min | |||
Z axis | 10m/min | |||
A axis | 82.5°/SEC | |||
C axis | 74°/SEC | |||
Max. Cutting Speed | X axis | 25m／min | ||
Y axis | 25m／min | |||
Z axis | 10 m／min | |||
Working table structure | T-slot working table size: 2000*2500*1000mm | |||
