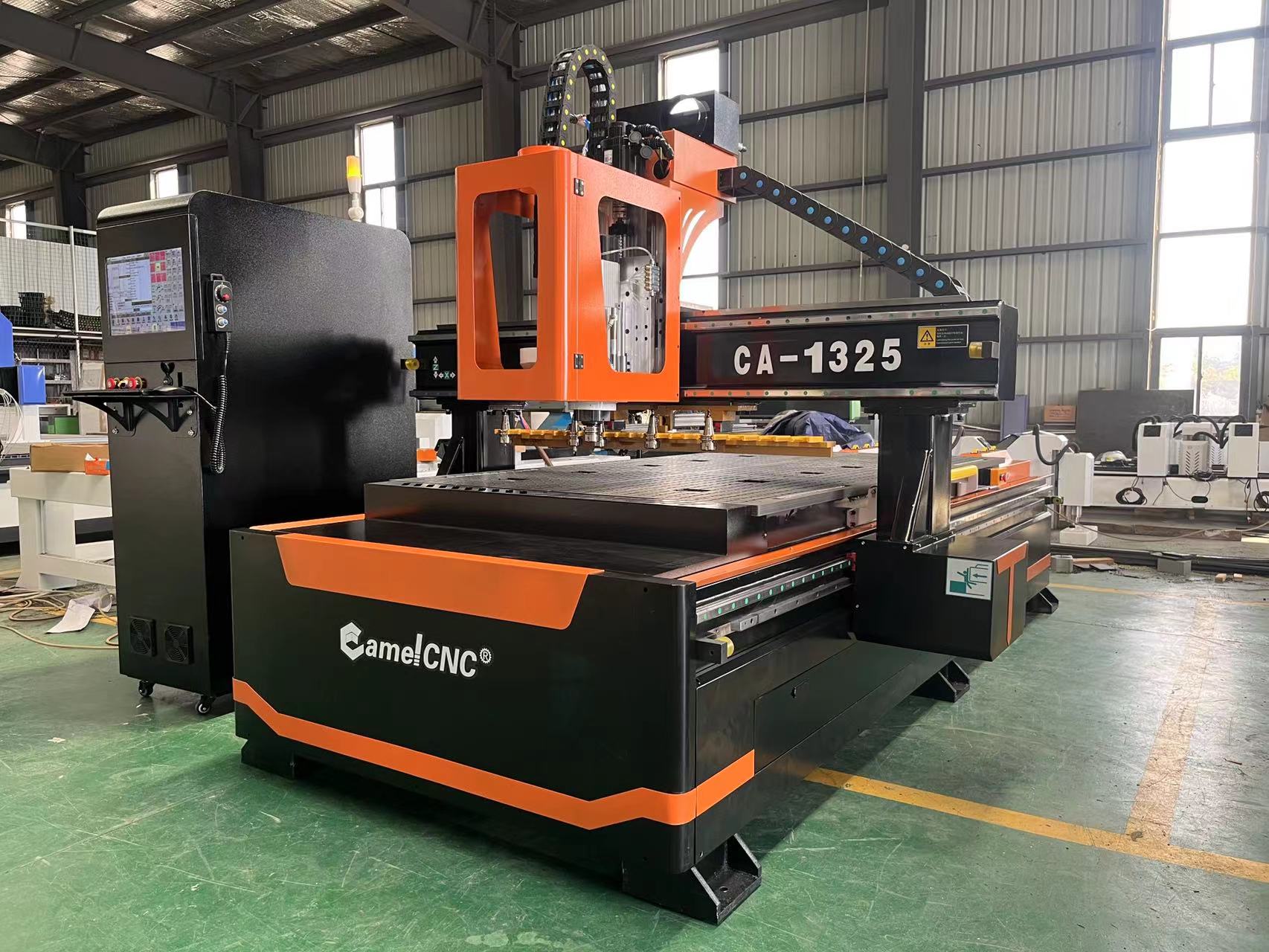

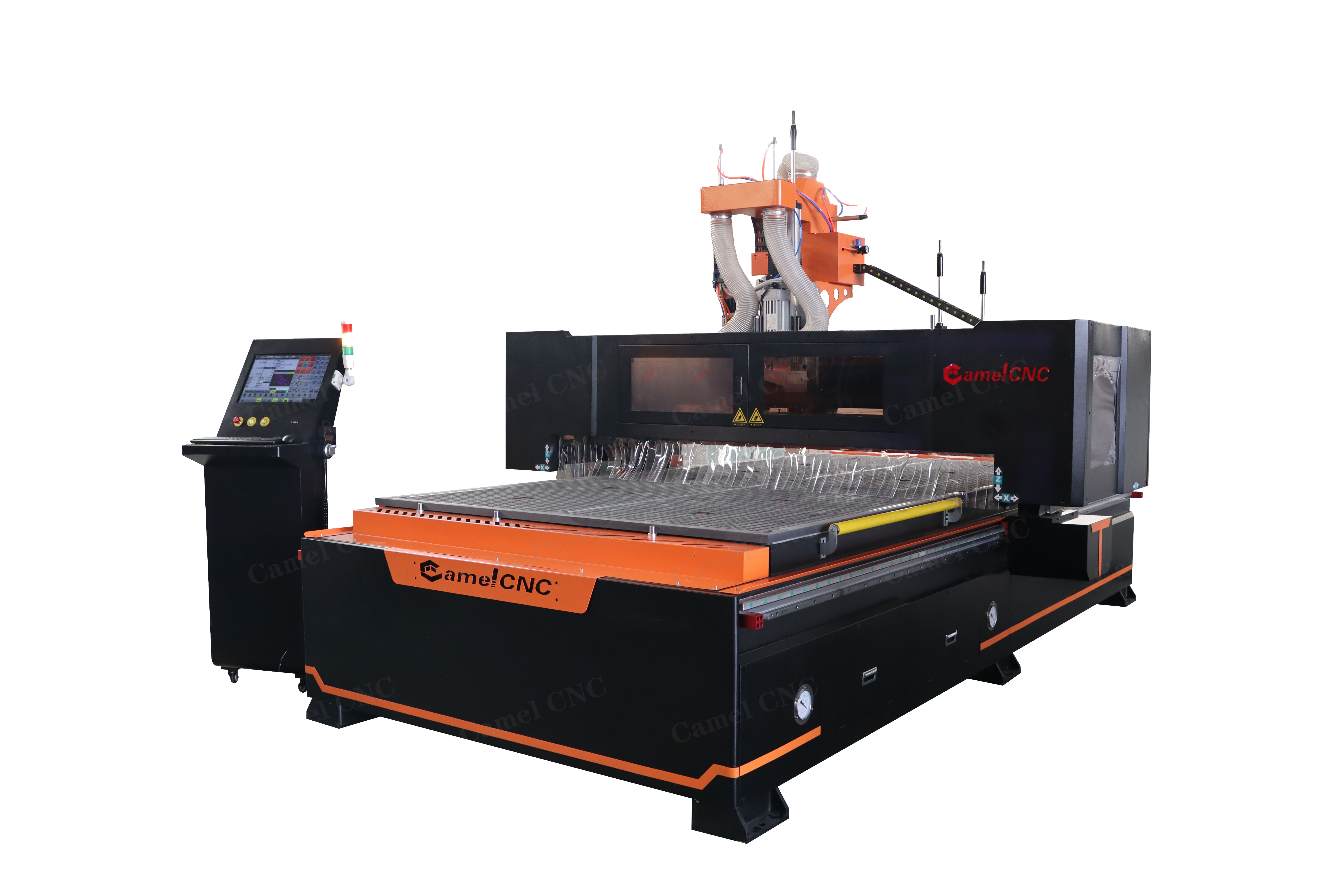

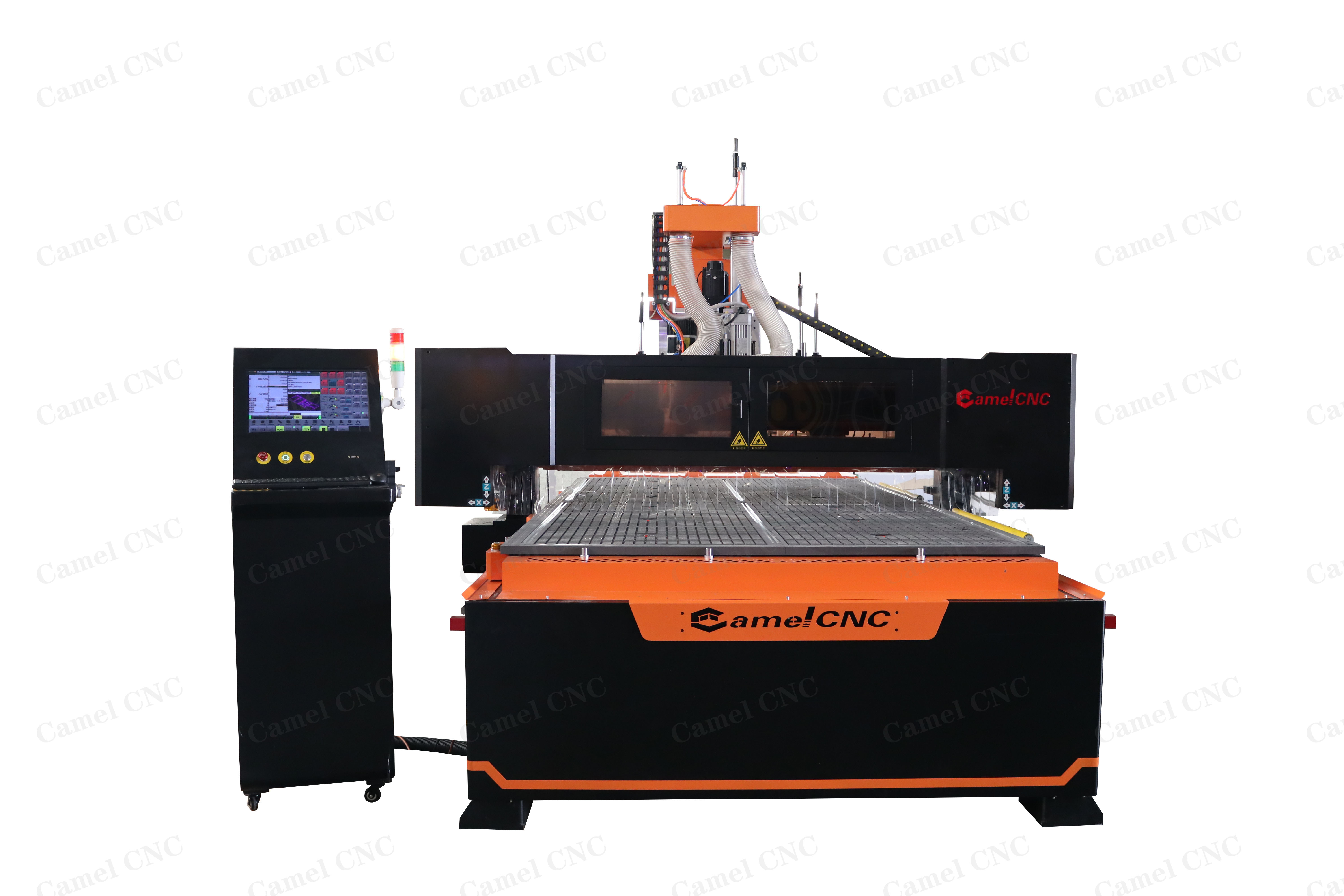

• Model: CA-1325 1530
  • FOB Price : 10800
  • Min Order Quantity: 1
  • Supply Ability:
  • Payment Terms:
  • Product Detail

    Product Tags

    Main configuration:

    1.Working size:1300mm*2500mm*200mmworking voltage 380V,3 phase,50/60HZ

    2.Industrial Heavy Duty Square Steel Tube Structure

    3.High Efficient 1.5MM Taiwan Helical Rack Gear transmission, X,Y axis Rack and pinion, Z axis Taiwan TBI Ball screw

    4.Y Axis Taiwan 30MM square guid rail, X,Z with 25mm

    5.Leadshine 1500W pure Servo motor and driver System

    6.11KW Fuling Inverter and 3 sets Japan Shimpo reducer

    7.Auto tool position sensor

    8. 9KW HQD air cooling spindle special for auto-tool changer

    9. 12 pieces movable ISO30 auto-tool changer Magazine

    10.With Automatic Vacuum system,including Bakelite

     vacuum&T-slot combined working table with 6 pcs control valve and 7.5KW vacuum pump

    11.3KW Auto Dust Collector System

    12.Taiwan LNC 2200 ATC Control System with hand wheel

    13. Auto Lubrication for transmission system

    14. 12 sets Auto-tool changer holders, Cutters and Collets, 1 sets Qing bottom knife

    15.20 sets woodworking tools

    16.Whole set of maintenance tools,Allen wrench,

    Spanner,copper connection,clamps etc.

    17 .JDPaint software

    Specification:

     1.Super quality 9KW Air cooling Auto-tool changer spindle.

     2.Taiwan Hiwin linear guide rail keep high working precision

     3.Famous servo motor and driver ensures machine to run with fast speed and low noise.

     4.With 12 pieces auto-tool changer and Auto tool sensor.

     5.Vacuum table and vacuum pump, and 3.0kw dust collector.

     6.Taiwan LNC ATC controlling system, which can change tools alternatively, tool sensor to compensate the tolerance of tool length.

        7.High accuracy, long service time, steady movement and good starting performance, great torque, fulfilling the advantage of working with fast and high efficiency.



    Application:

     1.Woodworking Industry: MDF, wood, acrylic, PVC, double-color board, brass, aluminum, marble, crystal.

       2.Advertising industry: advertising billboard, sign making, acrylic cutting, graphic mold forming and processing of many kinds of advertising terms.

       3.Architectural model industry: metal models of copper, aluminum, iron etc, and non-metal models, such as artificial marble, grave, plastic board, PVC, board etc.

       4.Other industry: image engraving, embossing, craft and gift industry



    Technical Data



    Name

    Specification

    X,Y,Z Working Area

    1300X2500X200mm

    Table Size

    1855X3340mm

    X,Y,Z,Traveling Positioning

     Accuracy

    ±0.03/300mm

    X,Y,Z,Repositioning Positioning

     Accuracy

    ±0.05mm

    Lathe Bed

    Strong lathe bed

    Gantry

    Steel structure gantry design

    Guide Rail

    Taiwan Hiwin Square Rail with X,Y,Z axis

    XY Z Transmission

    Gear rack with X and Y axis

    Imported Ball Screw with Z axis

    Spindle Motor

    9kw HQD Air cooling spindle special for tool changer

    Max. Speed

    0-45000mm/min

    Max. Working Speed

    0-25000mm/min

    Spindle Speed

    0-24000RPM

    Drive Mode

    Servo system

    Working Voltage

    AC220V/380V, 50/60Hz

    Command

    G Code, *uoo, *mmg, *plt

    Inverter

    11KW Fuling inverter

    Control System

    Taiwan LNC control system

    Typeset Software

    ARTCAM(can support any G-code software)

    Motor

     Leadshine Servo Motor

    Driver

    Servo Driver

    Tools cooling

    OIL sprayer pump

    Lathe Table

    Vacuum table with 8 sections +6 vacuum cups

    Vacuum Pump

    7.5KW VACUUM Pump

    Air compressor

    3.0KW

    Tool Magazine

    12pcs ISO30 tool holder

    Dust Collector

    3.0KW

    Electricity cabinet

    Independent Cabinet

    Tool sensor

    TOOL SENSOR

    Collet

    ER32

    X,Y Working Delicacy

    <0>

    Software

     Ucancam,  Artcam

    Running circumstance

    Temperature: 045, Relative humidity: 30%75%
