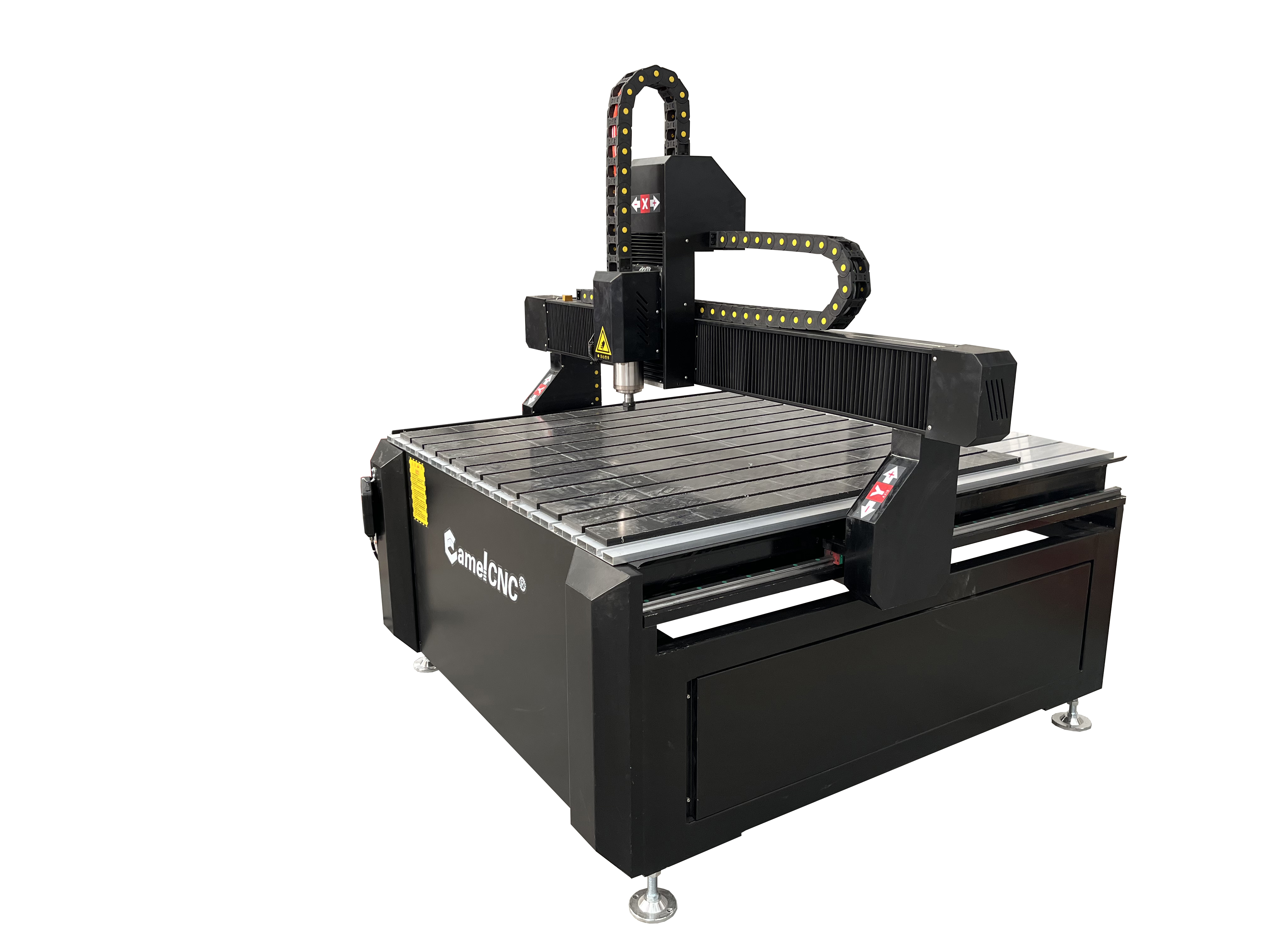

CA-1212 Advertising CNC Router
Specification:
Structure: Integral cast frame, solidity and stable.
Accuracy: Adopt Square guid rail and imported high accuracy ball screw to ensure more stable movement and high accuracy.
Appearance: Aluminum decorative appearance, beautiful design and then makes the whole machine magnificently.
Spindle: Advanced air-cooling brushless spindle, low noise, more power, long-time mass processing.
Design: It adopt several kinds of electrical parts with good design to minimize the failure ratio.
Multi-functions: It can support ArtCAM/ Ucancam and several kinds of CAD/CAM design software.
Application:
This machine is widely used in advertising industry, such as sign making, breast card, office board ,ruler, art crafts, small metal sign plate, construction models and so on.
Efficient manufacturing of wooden products, advertising billboard, acrylic cutting, letter mold form-ling and mass cutting. Also the machine can engrave on iron, brass, aluminum, plastic and wood boards and other non-metal materials.
Technical Parameters:
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 1200mmx1200mm |
2 | Table Size | 1480mmx1520mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z repositioning Positioning Accuracy | ±0.05mm |
5 | Lathe Structure | Cast Steel |
6 | X, Y Structure | Shaft Linear Bearings and Ball Screw |
7 | Z Structure | Taiwan TBI Ball Screw |
8 | Max. Consume power | 3.0Kw |
9 | Max. Speed | 0-8000mm/min |
10 | Max. Working Speed | 0-6000mm/min |
11 | Spindle Power Motor | 2.2kw water-coolant spindle |
12 | Spindle Speed | 0-24000RPM |
13 | Drive Mode | Stepper Motor |
14 | Working Voltage | AC220V, 50/60Hz |
15 | Command | G code, *uoo, *mmg, *plt |
16 | Operating System | Mach3 control system |
17 | Collet | ER20 |
18 | X,Y Working Delicacy | <0.01mm |
19 | Software | Ucancam, Artcam JD Paint |
20 | Running circumstance | Temperature: 0℃～45℃ Relative humidity: 30%～75% |
