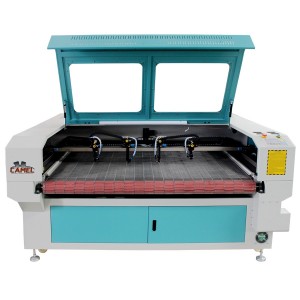

CA-1610 Auto Feeding Laser Cutting Machine
Configuration:
1.Working size 1600mm by 1000mm
2.High precision Taiwan Hiwin Square Guid Rail
3.RDcam(Ruida) offline control system with USB offline function
4. Stepper motor and driver
5. 4 sets EFR 80W laser tube and device
6. Stainless steel blade Auto Feeding Working
Features:
1.This type of laser cutting machine can cut materials fast and continuously.
2.It fully supports CAD,CORELDRAW,GERBER and other design software.
3.User-friendly human-machine interface.
4.It can store up 128 working documents, and thus users can select files without connecting to the computer.
5.The system has achieved 12-way work state output and 16-way input,with strong anti-jamming capacity.
Parameter:
| Working area | 1600mm*1000mm |
| Laser power | 4* 80W |
| Minimun shape characters | Chinese characters2*2mm,letters 1*1mm |
| Resolution | <4000dpi |
| Power | AC220±10%,50HZ |
| Positioning Accuracy | <0.01mm |
| Hanged line | 90lines |
| Total power | <1250W |
| Operating temperature | 0℃-45℃ |
| Operating Humidity | 5%-95%(no condensation) |
| Graphic format supported | BMP.GIF.JPEG.PCX,TGA,TIFF,PLT,CDR,DMG,DXF |
| Engraving Speed | 0-64000mm/min |
| Cutting Speed | 0-36000mm/min |
| Machine weight | 700kg |
Samples:
