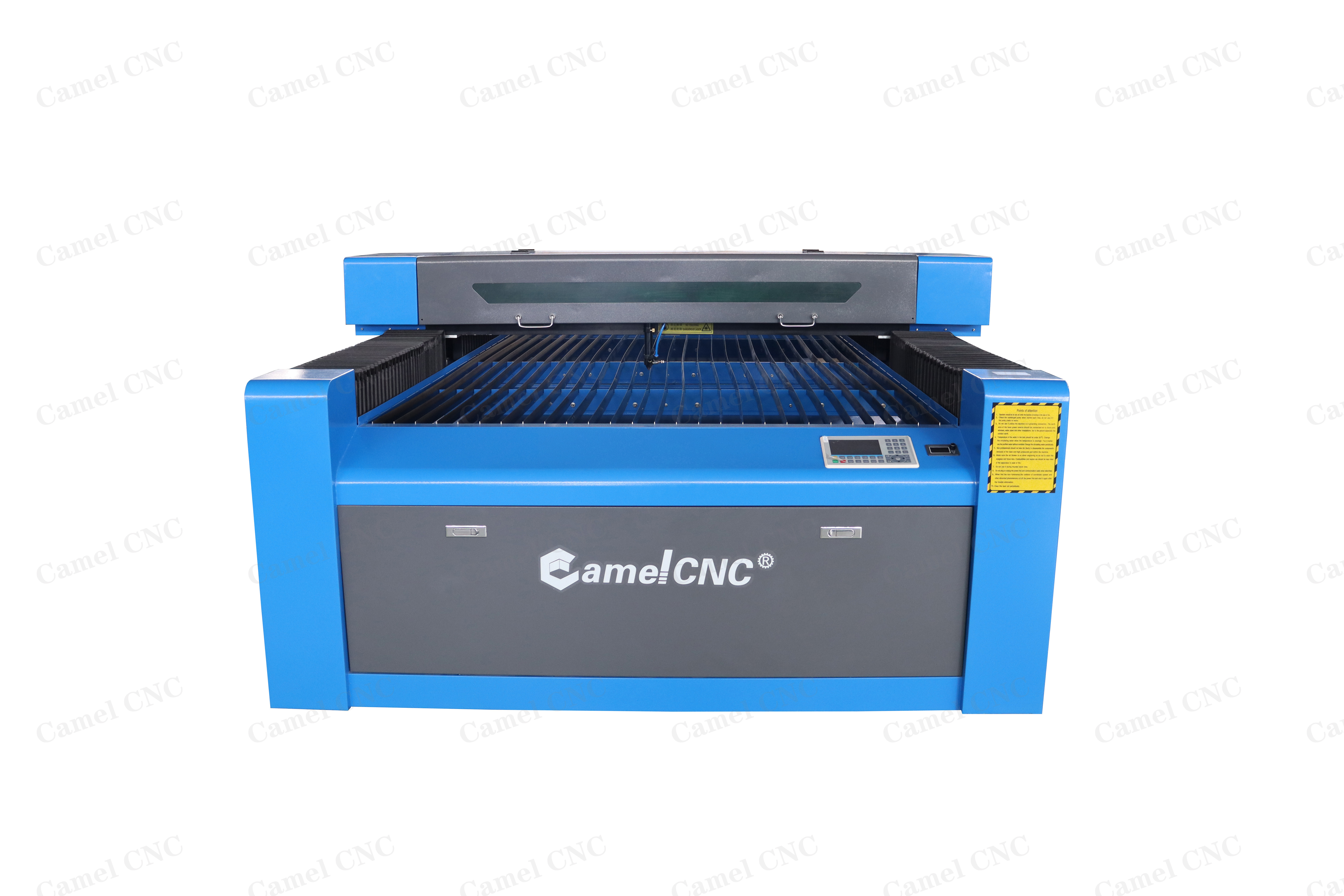

CA-1325 CO2 Laser Cutting Machine
Specification
1.USB cable to transfer data and offline LCD control system are both available.
2.Our three unique protection functions, i.e. anti-interference function, water-protective function and power cut-off function ensure longer working life, stability and effectiveness
3.Exhausting, absorbing and assistant blowing systems solve the problem that troubles the laser equipment manufacturing industry for years, extending the life of the laser tube.
4.It uses professional step motor and driver system.Mirror and lens are made of imported fibrous material, which can endure high temperature.
| Parameter | |||
| Type |
CA-1325 |
||
| Engraving Area | 1300*2500mm | ||
| Laser Power | 150W | ||
| Laser Type |
CO2 Laser Tube |
||
| Engraving speed |
0~60000mm/min |
||
| Cutting speed |
0~36000mm/min |
||
| Resetting positioning accuracy |
＜0.01mm |
||
| Cutting depth |
Acryl 0-25mm(other depths depend on other materials) |
||
| Minimum Shaping Character |
1.5×1.5mm |
||
| Power supply |
220V±10% 50HZ or 110V±10% 60HZ |
||
| Gross power |
1200W |
||
| Software supported |
ArtCut, CorelDraw, PhotoShop, AutoCAD |
||
| Graphic format supported |
PLT、DXF、BMP、JPG、GIF、PGN、TIF |
||
| Engraver for Curve surfaces (Yes/No) | No (we can add an Rotary attachment on the Laser Engrave/Cutting Machine, then the machine can engrave on Cylinder) | ||
| Water Cooling: (Yes / No) |
Yes |
||
| Maximum Height of Materials to Engrave (mm) |
280mm(Up and down by motor) |
||
| Laser Tube (life hours) | 5000 hours | ||
| Assistant Equipment |
Water chiller |
Exhaust Fan |
Flat bed worktable |
| Recommended Spare Parts / Consumables |
Laser Tube and Lens |
||
Application
Applicable materials: acrylic,wood, MDF,bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials
Applicable industries: advertisement, gift, shoes, toys, sign making,computers, garments, model cutting, building, packaging, paper industry
