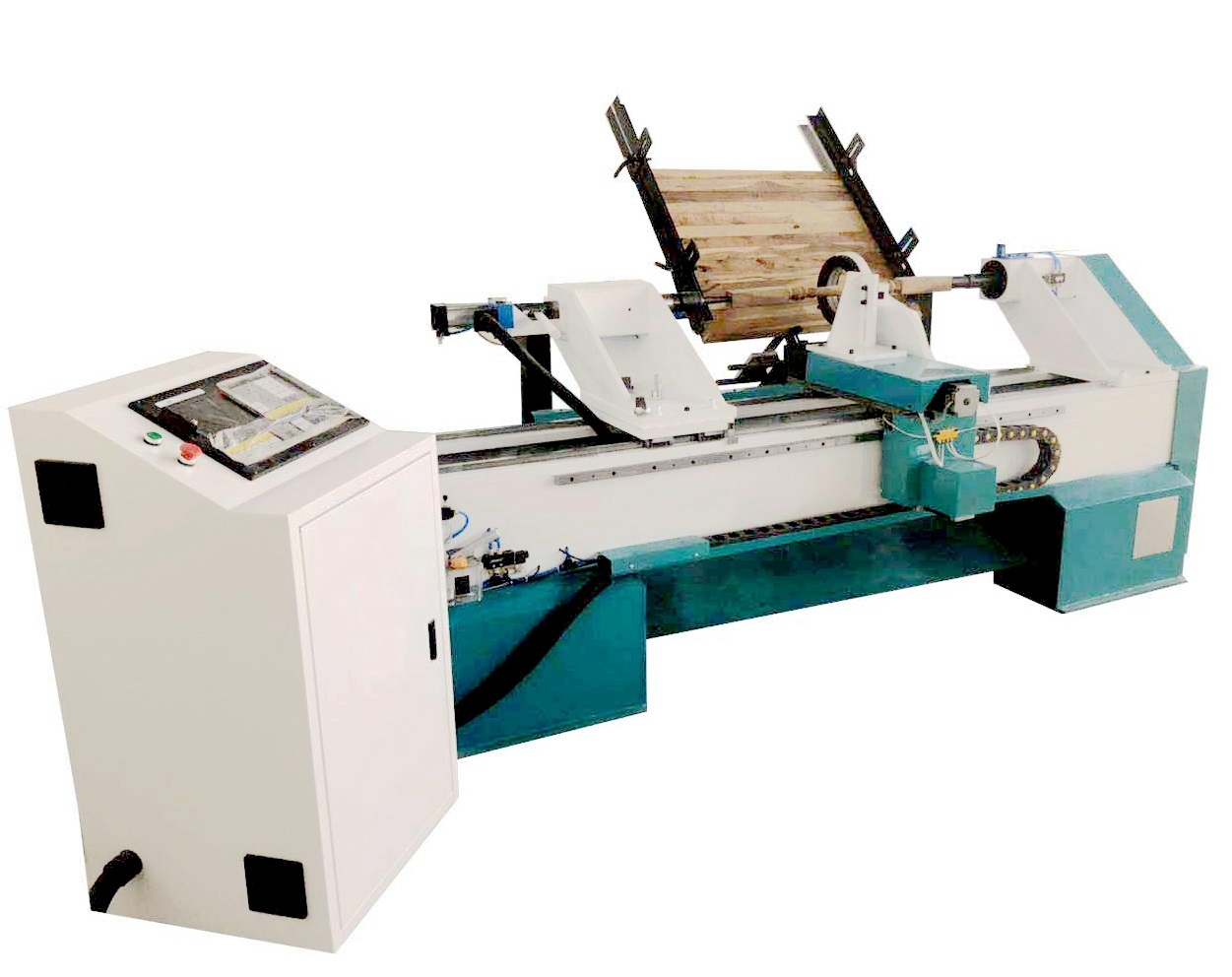

CA-1530 CNC Wood lathe with auto feeding system
Specification:
1. Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, machine weight up to 1500kgs to make sure the lathe body stabilized and never deformed.

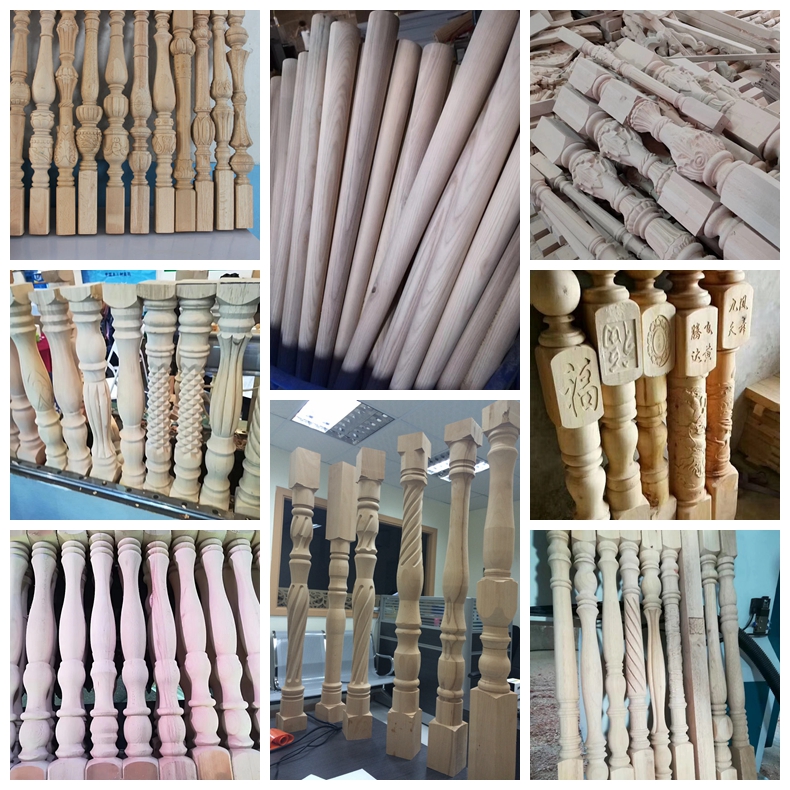

2. Special used for wood turning and wooden cylinder engraving, for table legs, stair railing (banisters), etc.
3. Adopting advanced LCD system with USB port which is easy for operating even without a computer.
4. Adopt Germany ball screw and Taiwan HIWIN helical square guide rail with high precision and longevity.
5. Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.
6. Rotating speed can be adjusted by inverter also you can see speed on control cabinet panel.
7. One time tool setting to finish the whole work piece.
8. Turning, broaching and engraving can be done with one machine by high speed.
Technical Data:
| Item | Specification |
| Max processing length | 1500mm(can custom 2000/2500/3000mm) |
| Max turning diameter | 300mm |
| Air pressure | 0.6-0.8Mpa |
| Power supply | AC 380V 3 phase 50HZ/60HZ（can custom 220V） |
| Max feed rate | 200cm/min |
| min setting unit | 0.01cm |
| Transmission type | gear for Y axis |
| Guider | Taiwan Hiwin orbit |
| Main shaft rotating speed | 0-3000r/min |
| Motor power | 4kw |
| Cutter material | Super hard alloy |
| Control System | LCD control system |
| Motor | Stepper motor |
| Driver | YAKO driver |
| Drawing Software | AutoCAD |
| Hand controller recognise file | *.dxf |
