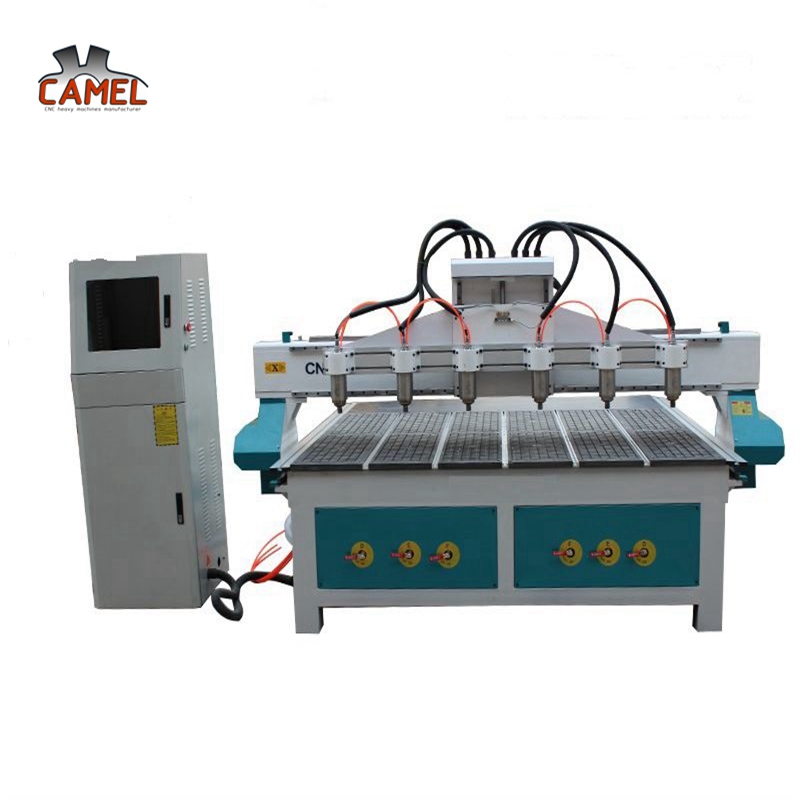

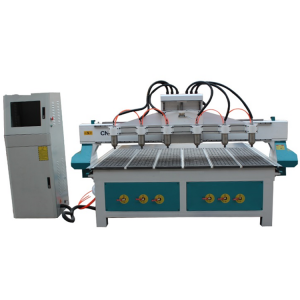

CA-1825 cnc router with 6 spindles
Configuration:
1.Working size:1800x2500mm
2.6 sets 2.2kw water cooling spindle
3.NC studio controller
4.T-slot pvc and aluminum working table(Vacuum table optional)
5.Stpper motor and drive
Advantage:
* Constructed from heavy,all-steel tube frame along with thicken steel gantry that ensure durability. It also features cast steel gantry supports which greatly dampen vibrations and improves routing quality.
* Use Professional high-temperature artificial aging treatment to eliminate welding stress, high precision machining planer ensures strong, durable with no deformation.
* XY axisfeatures high-precision helical racks and Z axis features ball screw to provide smooth motion and tight control for precise and quality engraving.
* Y-axis adopt dual-motor drive, powerful and smooth operation.
* The use of breakpoint memory ensures the continuing of processing in case of accidents. Such as cutter broken, power failure and stuck unforeseen.
* Just a touch of the automatic lubrication system, easy to complete regular maintenance.
* Compatible with any advanced CAM/CAD software, such as Type3, JDpaint,Artcam,CAXA,Pro-E,UG, Artcut, Mastercam.
Technical Parameter:
|
NO. |
Description |
Parameter |
|
1 |
X,Y,Z Working Area |
1800x2500x200mm |
|
2 |
Table Size |
2100×3140mm |
|
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
|
4 |
X,Y,Z Repositioning Positioning Accuracy |
±0.05mm |
|
5 |
Lathe Structure |
Welded Structure |
|
6 |
X, Y Structure |
Rack gear Transmission, Shaft Linear Bearings |
|
7 |
Z Structure |
TBI Ball Screw, Shaft Linear Bearings |
|
8 |
Max. Consume power |
6.5Kw |
|
9 |
Max. Speed |
0-32000mm/min |
|
10 |
Max. Working Speed |
0-20000mm/min |
|
11 |
Spindle Power Motor |
6 sets 2.2kw water-coolant spindle |
|
12 |
Spindle Speed |
0-24000RPM |
|
13 |
Drive Mode |
Stepper Motor and leadshine860 driver |
|
14 |
Working Voltage |
AC220V/380V, 50/60Hz |
|
15 |
Command |
G Code, *uoo, *mmg, *plt |
|
16 |
Operating System |
NC-STUDIO |
|
17 |
Collet |
ER20 |
|
18 |
X,Y Working Delicacy |
<0.01mm |
|
19 |
Software |
Ucancam, Artcam,Type3 |
|
20 |
Running Circumstance |
Temperature: 0℃～45℃ Relative humidity: 30%～75% |
|
All parameters above subject to change without prior notice |
||
Sample:
