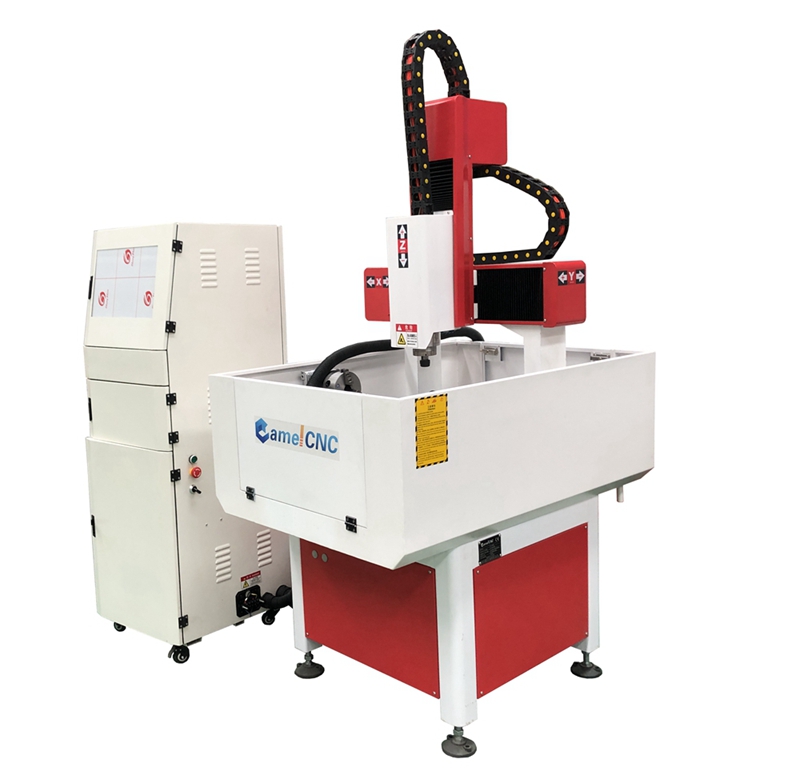

CA-6060 Metal CNC Router
Specification:
1. Structure: Integral cast frame, solidity and stable.
2. Accuracy: Adopt Square guid rail and imported high accuracy ball screw to ensure more stable movement and high accuracy.
3. Appearance: Aluminum decorative appearance, beautiful design and then makes the whole machine magnificently.
4. Spindle: Advanced constant mould water-cooling brushless spindle, low noise, more power, long-time mass processing.
5. Design: It adopt several kinds of electrical parts with good design to minimize the failure ratio.
6. Multi-functions: It can support ArtCAM/ Ucancam and several kinds of CAD/CAM design software.

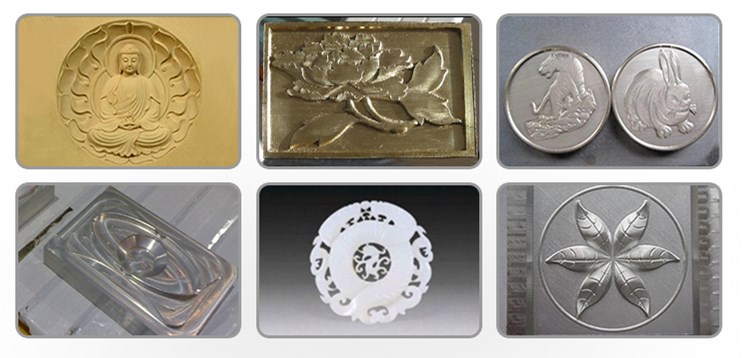

Application:
Metal working and mould making: nonferrous metals like aluminum, brass engraving,cutting,milling etc.
Stone working: engraving or cutting various gemstone,marble, granite, bluestone, gritstone, soapstone and etc.
Glass working: various glass.
Other materials: wood,acrylic,MDF etc.
Technical Parameters:
|
|
Model |
CA-4040 |
CA-6060 |
|
1 |
X,Y,Z Working Area |
400*400MM |
600*600MM |
|
2 |
Table Size |
620x650mm |
820mmx850mm |
|
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
|
|
4 |
X,Y,Z repositioning Positioning Accuracy |
±0.05mm |
|
|
5 |
Lathe Structure |
Cast iron |
|
|
6 |
X, Y Structure |
Shaft Linear Bearings and Ball Screw |
|
|
7 |
Z Structure |
Taiwan TBI Ball Screw |
|
|
8 |
Max. Consume power |
3.0Kw |
|
|
9 |
Max. Speed |
0-8000mm/min |
|
|
10 |
Max. Working Speed |
0-6000mm/min |
|
|
11 |
Spindle Power Motor |
2.2kw water-coolant constant mould spindle |
|
|
12 |
Spindle Speed |
0-18000RPM |
|
|
13 |
Drive Mode |
Stepper Motor and Leadshine 860 Driver |
|
|
14 |
Working Voltage |
AC220V/380V, 50/60Hz |
|
|
15 |
Command |
G code, *uoo, *mmg, *plt |
|
|
16 |
Operating System |
NC-STUDIO system |
|
|
17 |
Collet |
ER20 |
|
|
18 |
X,Y Working Delicacy |
<0.01mm |
|
|
19 |
Software |
Ucancam, Artcam |
|
|
20 |
Running circumstance |
Temperature: 0℃～45℃ Relative humidity: 30%～75% |
|
