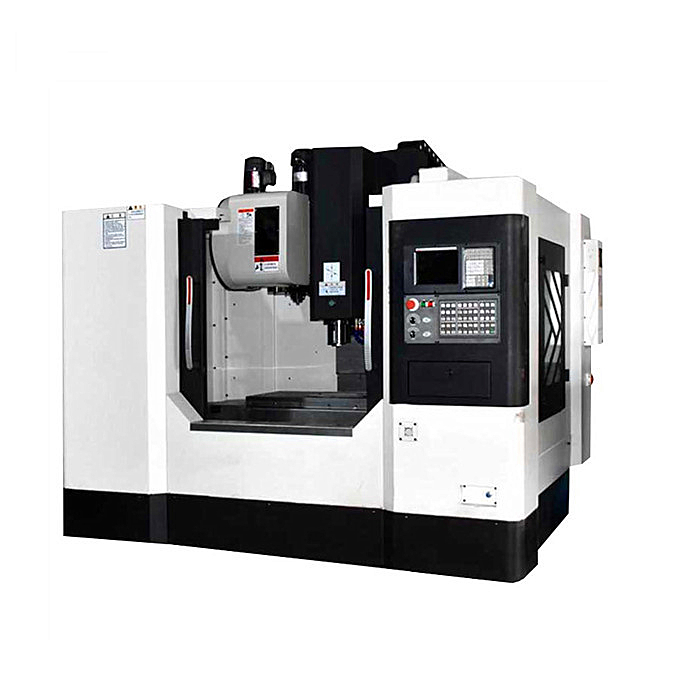

VMC850 Vertical CNC Machining Center
Main Specicicication:
KND/Syntec/GSK Control system
Servo system
Taiwan Hiwin Linear guide rail
Auto lubrication system
Full cover
16/24 Pcs arm/armless tool magazine

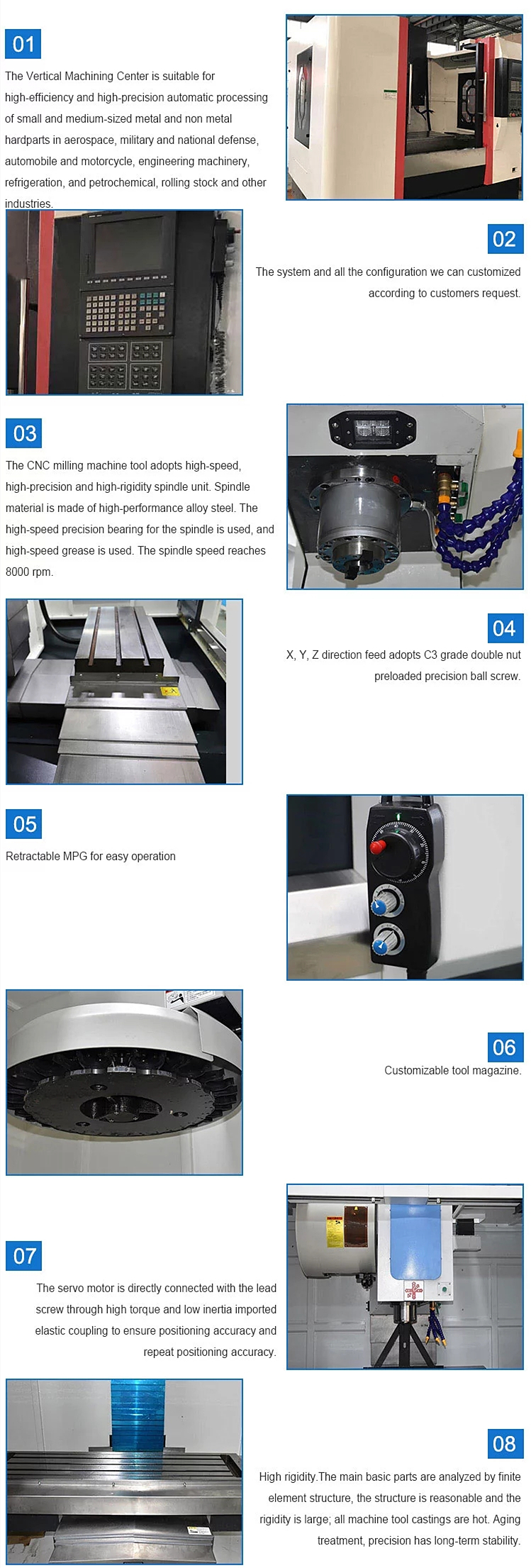

Machine Detailed Introduction:
Technical Parameter:
|
Specifications
|
Units
|
VMC850
|
|
Table size
|
mm
|
1000×500
|
|
X axis travel
|
mm
|
800
|
|
Y axis travel
|
mm
|
500
|
|
Z axis travel
|
mm
|
500
|
|
Max. worktable load
|
kg
|
500
|
|
T slot(number-width-pitch)
|
|
5-18×100
|
|
Max. spindle speed
|
rpm
|
8000(Optional:10000 )
|
|
Spindle taper
|
mm
|
BT40
|
|
Main motor power
|
kw
|
7.5/11
|
|
X/Y/Z rapid traverse speed
|
m/min
|
24/24/20
(Optional:48/48/36 )
|
|
Cutting feed speed
|
mm/min
|
1-8000
|
|
Guide rail type
|
|
Linear rail
|
|
Distance from spindle axis to column surface
|
mm
|
525
|
|
Distance between spindle nose and worktable surface
|
mm
|
130-630
|
|
Positioning accuracy
|
mm
|
±0.0075
|
|
Repeat positioning accuracy
|
mm
|
±0.005
|
|
Tool magazine
|
|
Arm 24
|
|
Max. tool diameter
|
mm
|
φ78 (Adjacent)/ φ120(Apart)
|
|
Max.tool weight
|
kg
|
8
|
|
Machine weight
|
kg
|
5600
|
|
Overall dimension
|
mm
|
2600X2300X2800
|

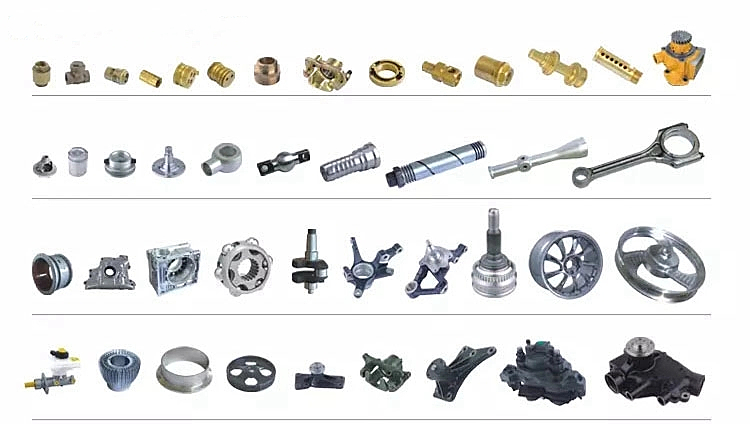

Samples:
