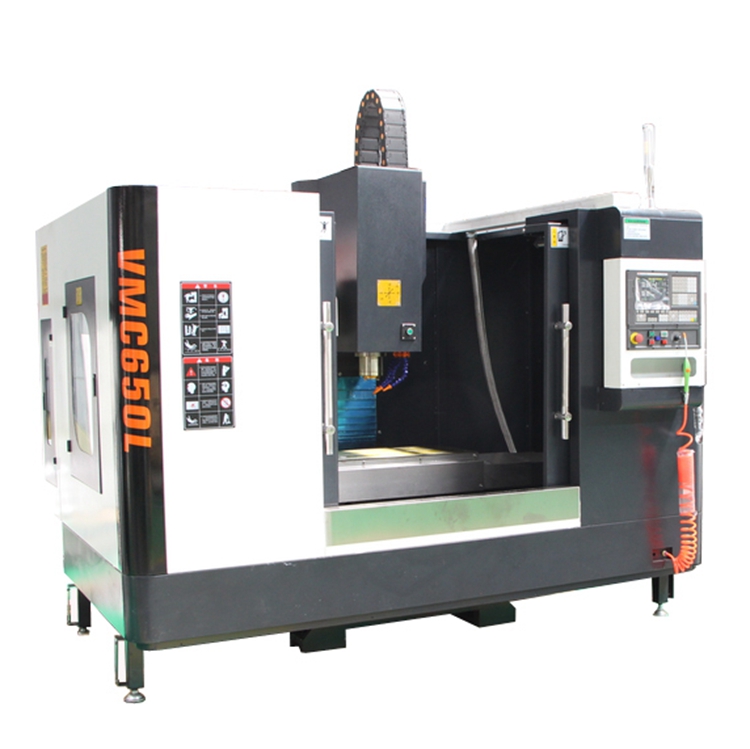

VMC650 CNC Machining Center
Features:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Product main technical specifications:
|
Specifications |
Units |
VMC650 |
|
Table size |
mm |
800×400 |
|
X axis travel |
mm |
650 |
|
Y axis travel |
mm |
400 |
|
Z axis travel |
mm |
500 |
|
Max. worktable load |
kg |
400 |
|
T slot(number-width-pitch) |
|
3-18×125 |
|
Max. spindle speed |
rpm |
8000(Optional:10000 ) |
|
Spindle taper |
mm |
BT40 |
|
Main motor power |
kw |
5.5 |
|
X/Y/Z rapid traverse speed |
m/min |
24/24/20 (Optional:48/48/36 ) |
|
Cutting feed speed |
mm/min |
1-10000 |
|
Guide rail type |
|
Linear rail |
|
Distance from spindle axis to column surface |
mm |
469 |
|
Distance between spindle nose and worktable surface |
mm |
100-600 |
|
Positioning accuracy |
mm |
±0.0075 |
|
Repeat positioning accuracy |
mm |
±0.005 |
|
Tool magazine |
|
16 Armless/(Optional: Arm 24 ) |
|
Max. tool diameter |
mm |
φ90 |
|
Max.tool weight |
kg |
8 |
|
Machine weight |
kg |
4000 |
|
Overall dimension |
mm |
2400x2000x2550 |
