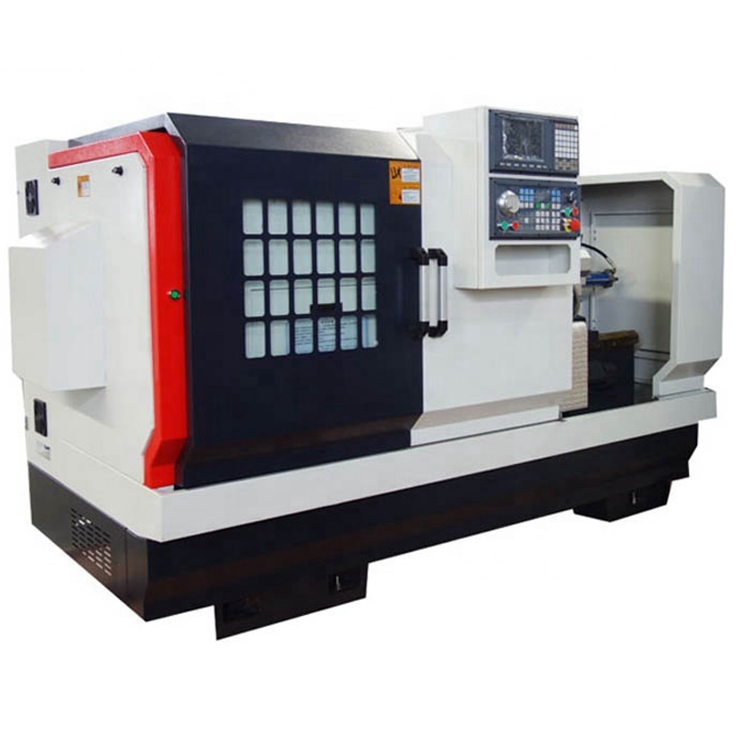

CA-6150 CNC Lathe
SPECIFICATION
|
|
CA6150 |
|
Max. swing over bed |
Φ500mm |
|
Max. swing over cross slide |
Φ250mm |
|
Max. processing length |
850 |
|
Spindle bore |
Φ82mm |
|
Max. diameter of the bar |
65mm |
|
Spindle speed |
1800 rpm |
|
Spindle nose |
A2-8 (A2-11 optional ) |
|
Work piece clamping way |
250mm manual chuck |
|
Spindle motor power |
7.5kw |
|
X/Z axis position accuracy |
±0.005mm |
|
X/Z axis repeatability |
±0.005mm |
|
X/Z axis motor torque |
5./7.5 N.m (7/10N.m optional) |
|
X/Z axis motor power |
1.3/1.88kw |
|
X/Z axis rapid feeding speed |
8/10 m/min |
|
Tool post type |
4station electric turret |
|
Tool bar section |
25*25mm |
|
Tailstock sleeve dia. |
Φ75mm |
|
Tailstock sleeve travel |
200mm |
|
Tailstock taper |
MT5# |
|
N.W. |
2850/3850kg |
|
Machine dimension (L*W*H) |
2950/3600*1520*1750mm |
2. FEATURES
high rigidity pedestal and wider lay board are suitable for heavy cutting
four station electric turret
inverter stepless speed
3. USAGE
It can automatically process the inside and outside cylinder surface, cone surface, circle arc surface,
end face. It can also turn the single and multiple threads in metric , inch and other standard.
