Description:
Fiber laser cutting machine is the best cutting tool for thin sheet metal cutting, especially for carbon steel, stainless steel cutting, it combines function of compact layout, stable optical link, convenient operation and reliable performance in one.
Parameters:
|
Model |

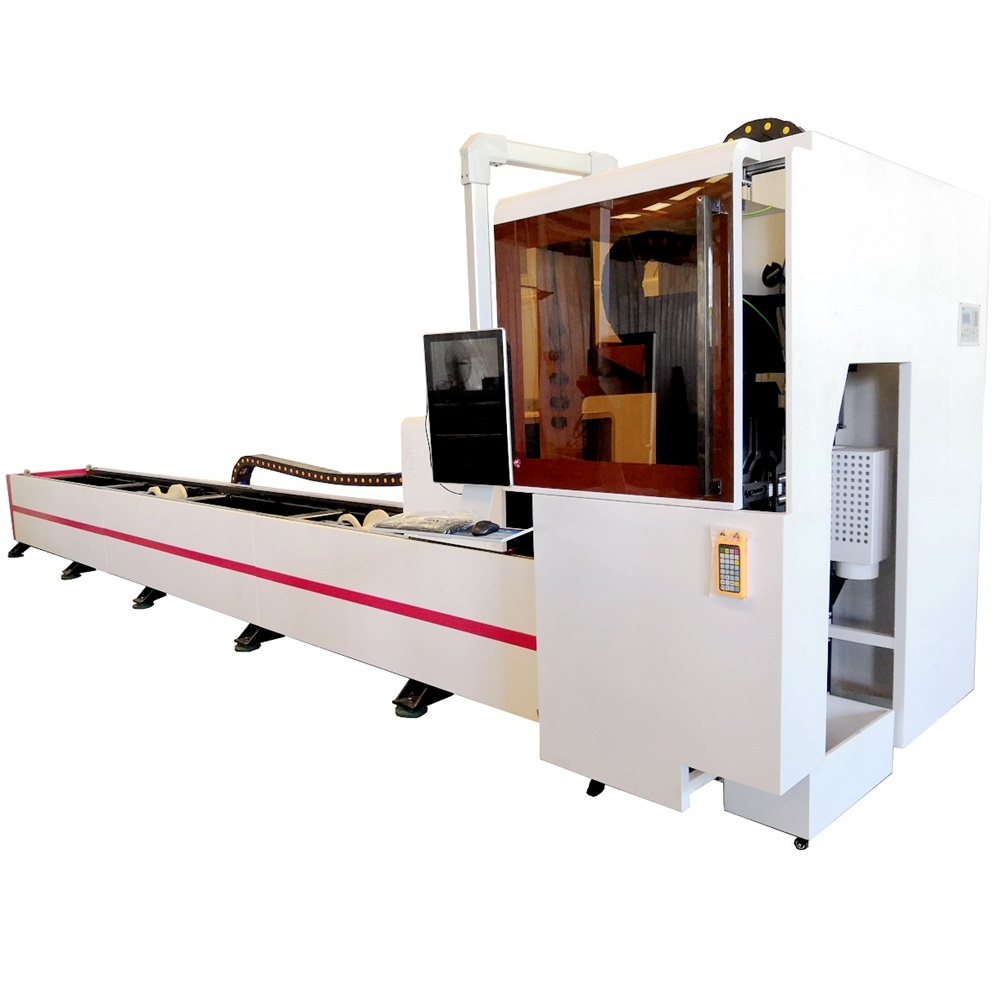

CA-F2060 Pipe Fiber Laser Cutting Machine |
|
Length |
6000mm |
|
Cutting diameter |
20-200mm |
|
Laser Power |
500W/1KW/1.5KW/2KW/3KW (Raycus) |
|
Laser Wave Length |
1060nm-1080nm |
|
Maximum Idle Running Speed |
60m/min |
|
Position Accuracy |
±0.02mm/m |
|
Position Speed |
60m/min |
|
Minimum Line Width |
± 0.02mm |
|
Cutting Thickness |
0.5-3mm ss or 1-6mm cs |
|
Control System |
Cypcut |
|
Position Type |
Red dot |
|
Power Consumption |
≤22KW |
|
Working Voltage |
380V/50Hz |
|
Auxiliary Gas |
Oxygen, Nitrogen |
|
Transmit system |
Dual Rack & Pinion type |
|
Motor Reducer |
Motoreducer(France Brand) |
|
Nesting Software |
Cypcut |
Applicable materials and Industry:

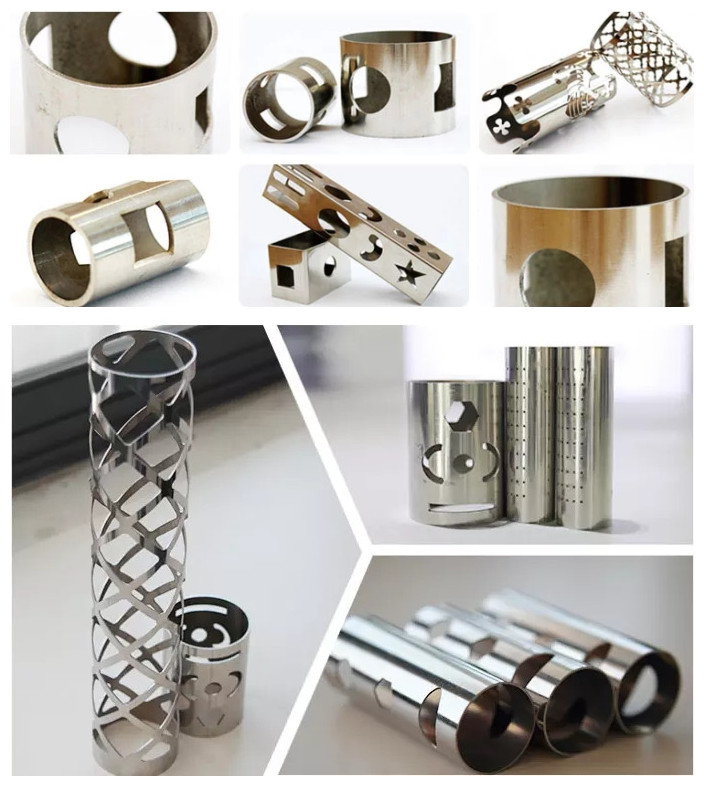

The applicable materials include: metal plates, pipes (pipe cutting plus pipe cutting device can be), stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass plate, aluminum plate, manganese steel, all kinds of alloy plates, rare metals etc.
Suitable for aerospace technology, rocket, plane, robot, elevator, steamship and automobile manufacturing and metal parts processing industry for metal plate, advertisement, kitchen ware, bit tool, hardware etc.
