Gantry plasma cutting machine is currently the most standard and most general CNC cutting machine in the cutting machine industry,   With heavy-duty gantry frame structure, cross beam adopts box-type welding structure, no distortion, high-efficiency bilateral drive, compact structure, overall tempering, fully eliminate welding stress, thick and atmospheric shape, stable and reliable performance；Transverse span of 3m, 4m, 5m, 6m 8m and other rules， Lattices are driven bilaterally, with two-axis straight-line guide rail, marked as transverse gauge 4m, effective cutting range: 3.2m, longitudinal rail length can be customized, single flame or single plasma cutting mode, with automatic ignition; flame and plasma dual-purpose cutting mode can also be added. Longitudinal guide rail length is 2 m per section. It can be configured to lengthen the guide rail and widen the span of the cross beam according to user’s requirements. It can also be configured to use multiple torches or grooves for cutting purposes according to user’s requirements.

Such as this CA-2060 Gantry plasma cutting machine as below:

Machine Configuration:

-Working size:2000mm*6000mm,guide rail size:2500*8000mm

-Taiwan HIWIN linear guide

-FLMC2300 control system

-Torch Height Controller

-Plasma cutting head&Driiling head&Flame cutting head

-Hypertherm 200A plasma source

-Smoke purification system

Application：

This machine is mainly used for precise cutting of large panel. It is a kind of cutting and cutting equipment with high efficiency and energy saving, which can greatly improve the utilization rate and cutting efficiency of steel plate. This machine can work continuously without stopping for a long time.

It can cut low carbon steel (flame cutting) and non-ferrous metals (plasma cutting) such as high carbon steel, stainless steel, aluminum, copper, etc. It is widely used in machinery, automobile, shipbuilding, petrochemical, military, metallurgy, aerospace, boiler, pressure vessel and other industries. EL, locomotive, etc.

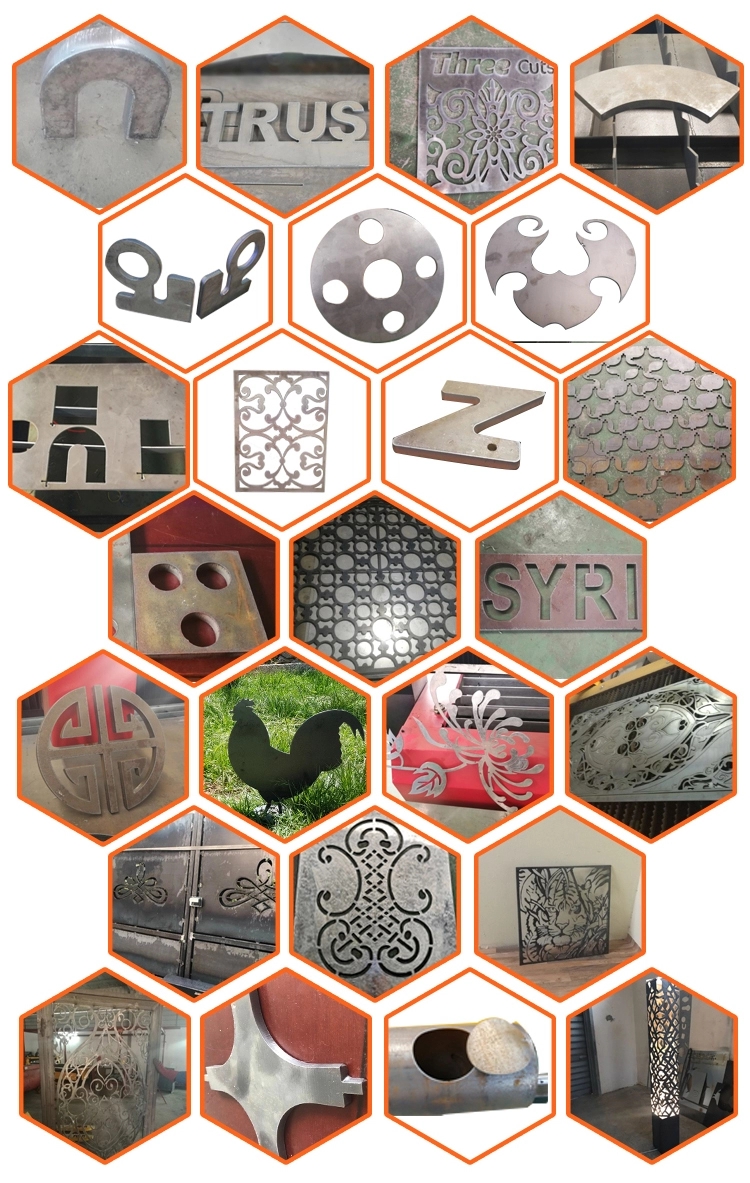

Samples:

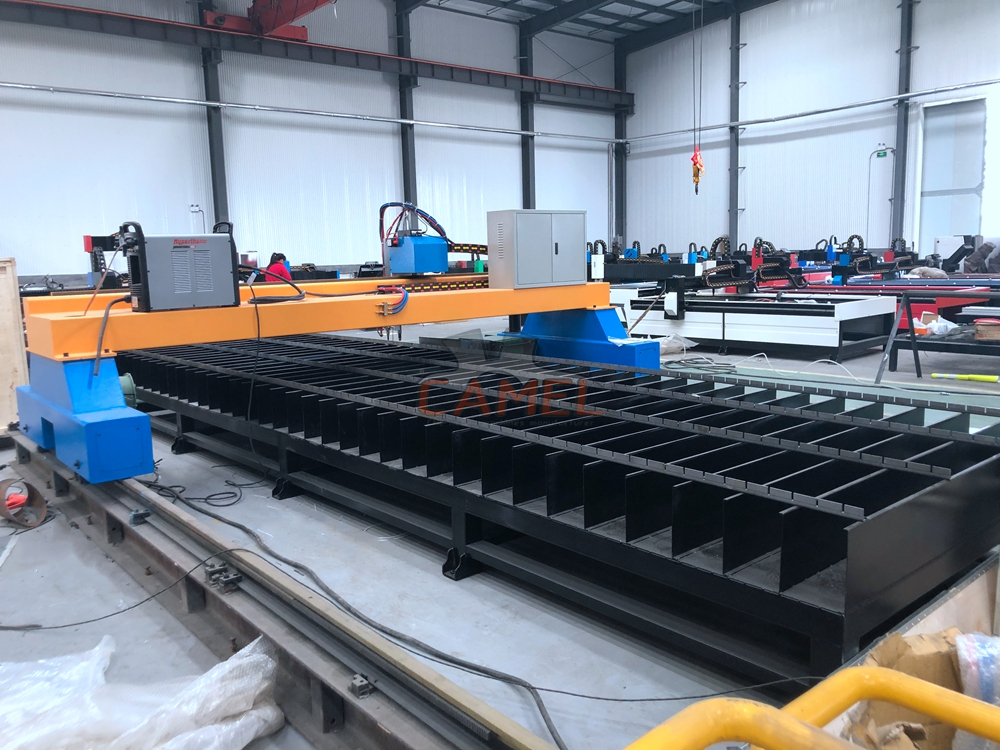

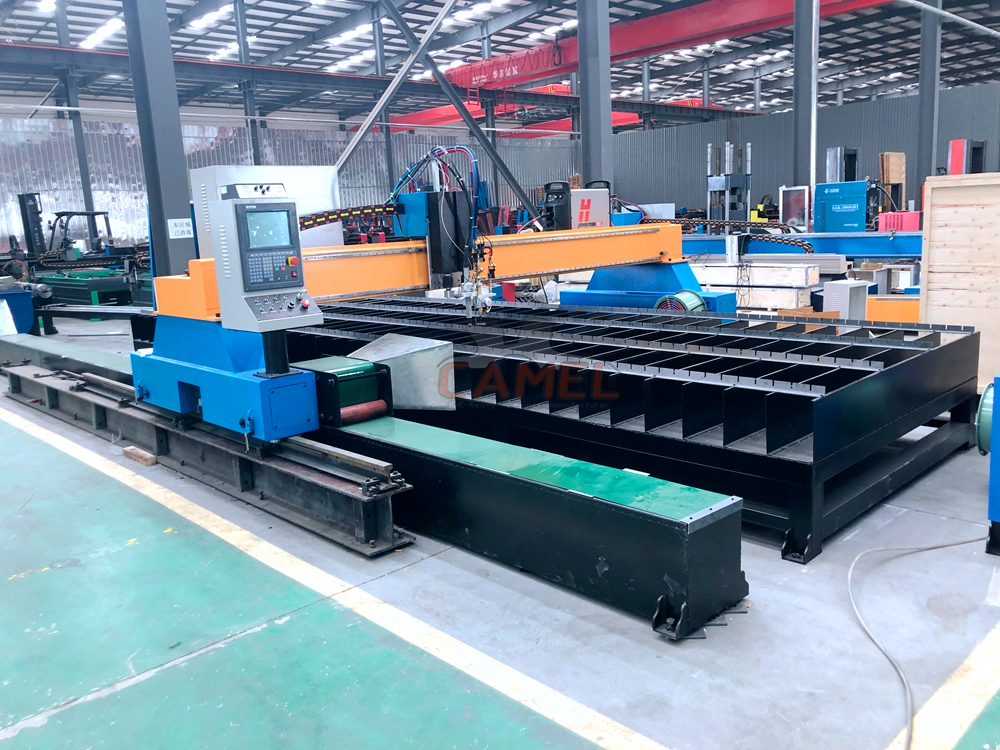

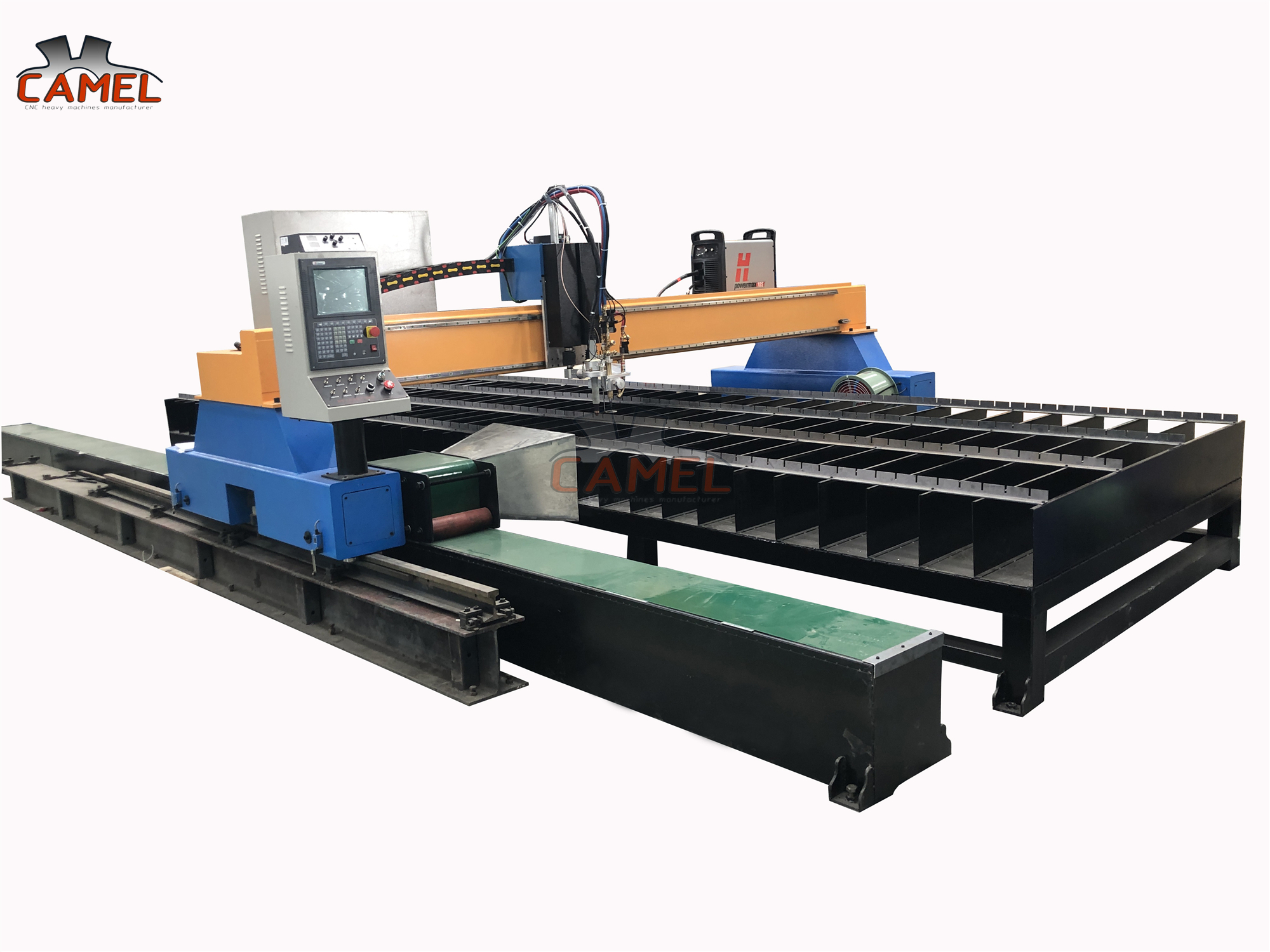

Machine Pictures:

MORE TECHNICAL PARAMETER AND WORKING VIDEOS,JUST CONTACT US!
